IC Chiller install & review

OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #61
don't go plastic unless you have the time to keep tightening them and chasing small drips.
Good info, thanks for the insight man



fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
#62
don't go plastic unless you have the time to keep tightening them and chasing small drips.
Ptfe paste and call it a day. Nary a leak.



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,467
Reactions
8,209
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
#63
Welp, I need to get different fittings for the water lines into the brick. I received metal 90 degree fittings as opposed to the plastic ones I typically see with this kit, and they only want to thread in 1/4 of the way, stick down way too far, and will become too loose if I try to index them the way I need them. Anyone know where I can get plastic chemical/heat resistant plastic 90 degree 3/4 barb to npt fittings? They really need to put AN fittings on the brick.
Try McMaster, they usually have everything lol



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #64
Try McMaster, they usually have everything lol
They have the plastic fittings, but ones that are too long. Everywhere is out of the banjo plastic fittings that usually comes with the kit, of course. I found what I believe to be the right fitting to use on this, but they’re $75 a piece



fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
#65
OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #66

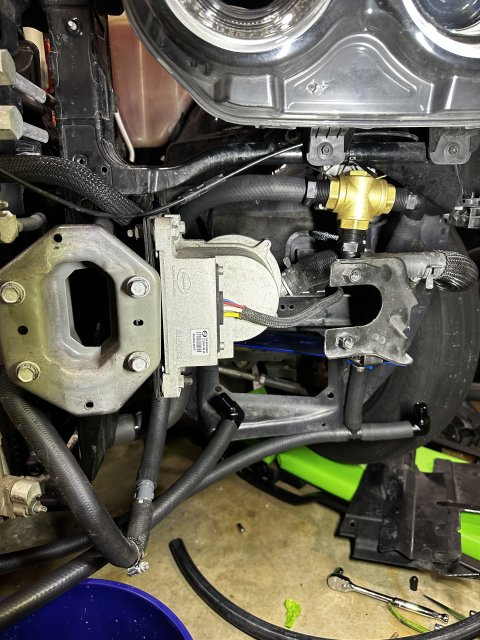

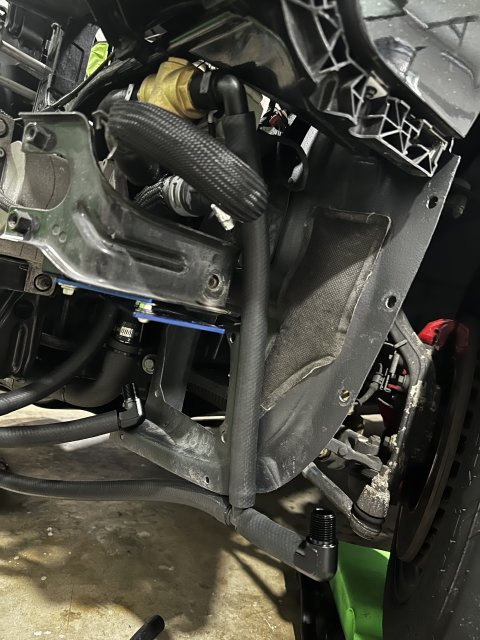

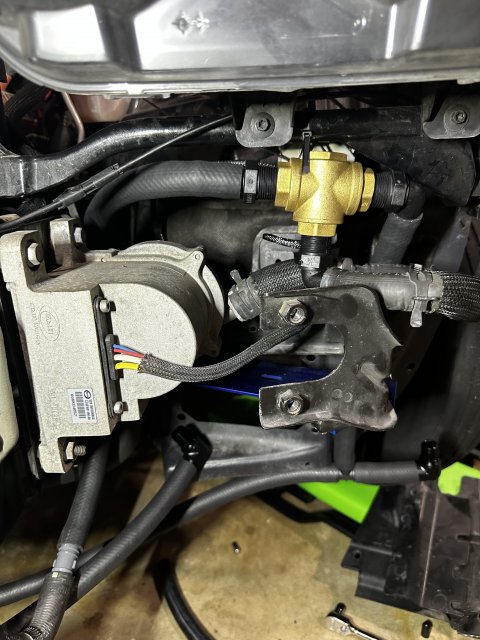

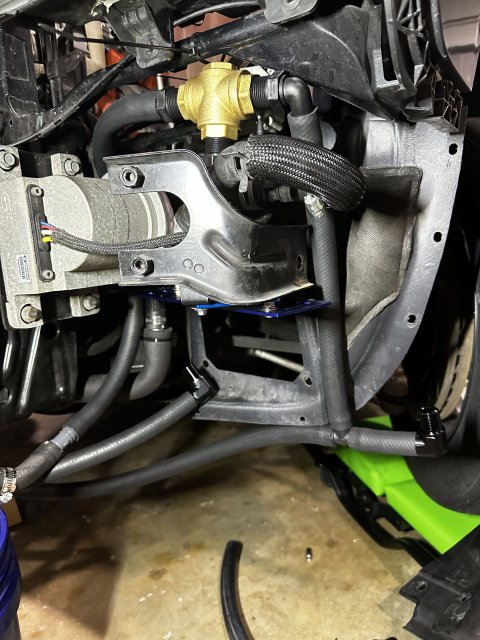

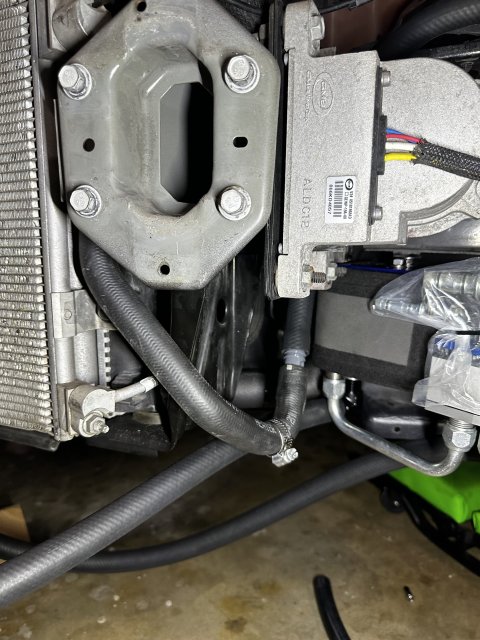

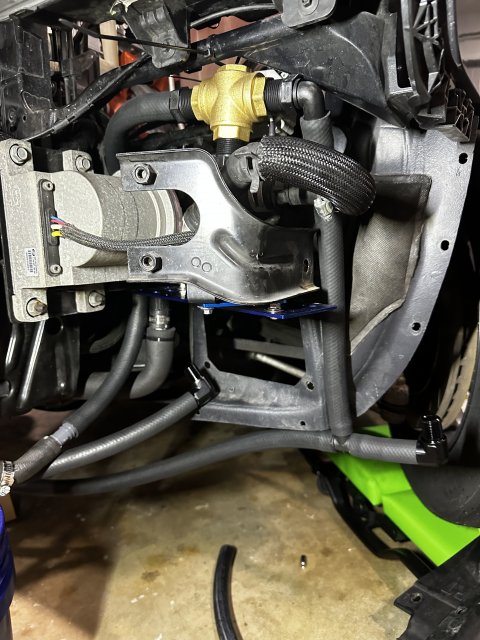

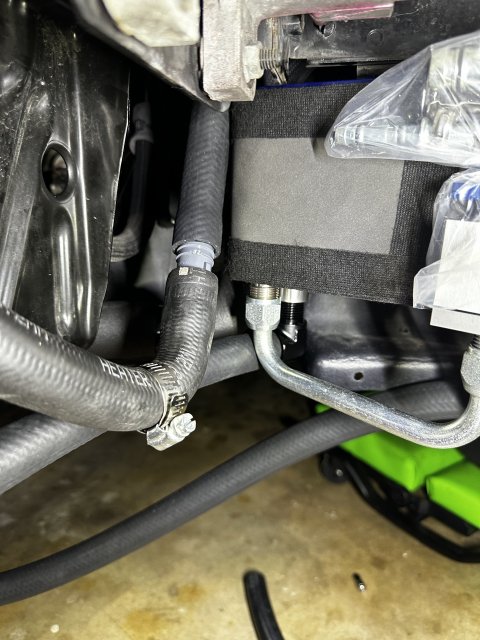

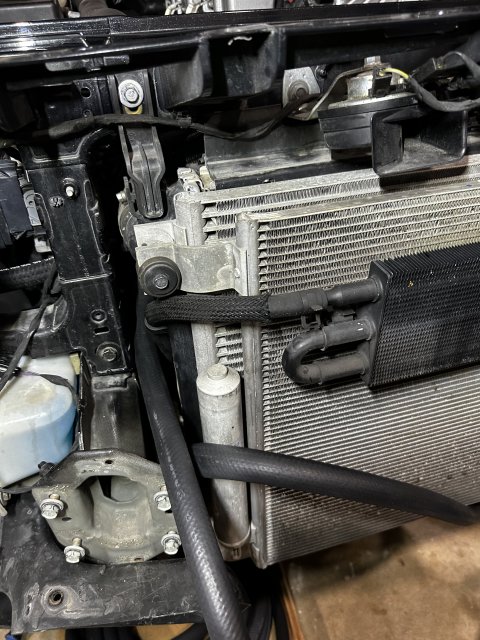

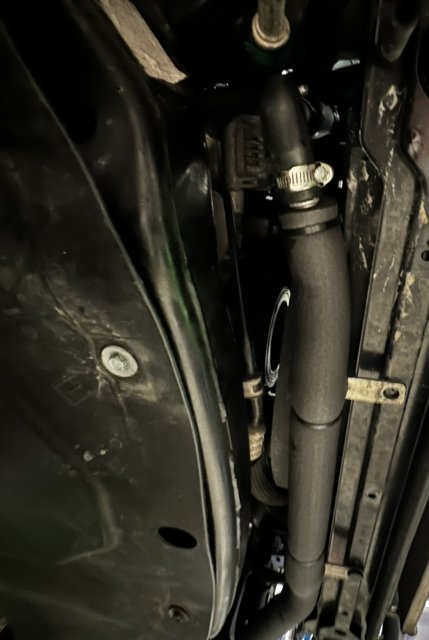

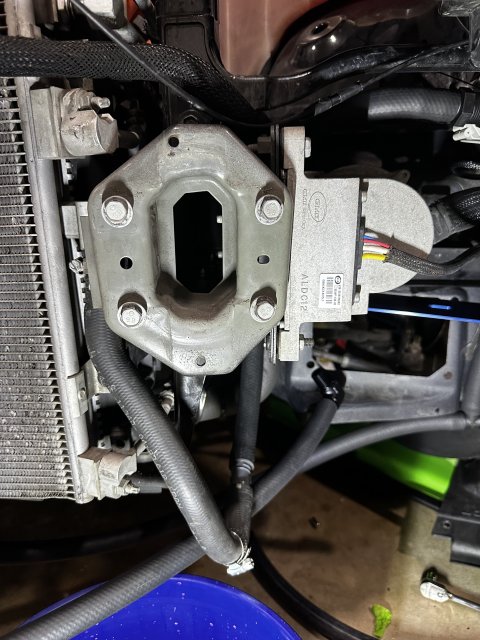

Since no one ever has pictures of how they plumb everything/mock it up before install, here you go!!

mill be adding color to the hoses/direction and theory of operation after I mount chiller, soft mount fittings and take more picture. Have never seen any without the brick installed that shows full line plumbing. Yes, I left hoses long as this is for mock up. Let me know if there are any questions - this is based on ICs updated plumbing

IMG_1607.jpeg IMG_1603.jpeg IMG_1602.jpeg IMG_1600.jpeg IMG_1601.jpeg IMG_1596.jpeg IMG_1604.jpeg



Attachments

OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #67
Right is hot, left is cold.



fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,784
Reactions
9,382
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
#68
Straight up factual lie, my thread brings all the mechanics to the yard, my install is better than yours… 😂



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #69
Straight up factual lie, my thread brings all the mechanics to the yard, my install is better than yours… 😂
I have used yours though, lots of good info



Last edited:
OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #70

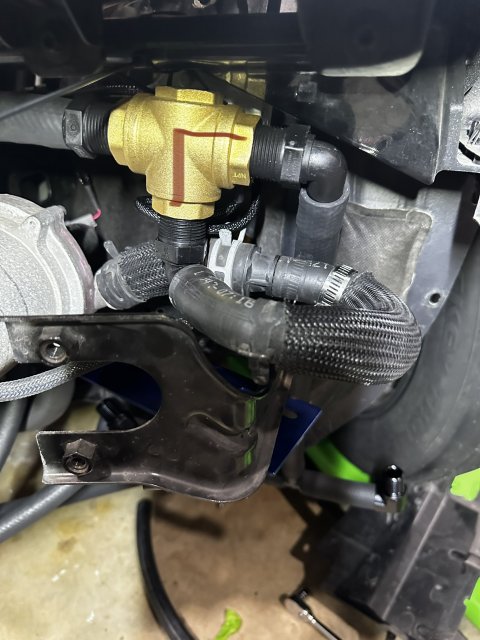

Valve off/default open position (normal open)




OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #71
Flow. Blue = cold, Red = hot (return from supercharger), Orange = heat exchanger




OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #72
Straight up factual lie, my thread brings all the mechanics to the yard, my install is better than yours… 😂
I used the double zip tie technique, I think that qualifies me as a mechanic 🤣



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #73
I think with the new plumbing the theory is that the pump is always pushing fluid into the chiller/chest exchanger instead of pulling from it. Not sure why, would be nice if someone had results of plumbing like this



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #74
Imo the 3 way bypass doesn’t do much at all because you’re still plumbed into 1 side of the heat exchanger



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #75

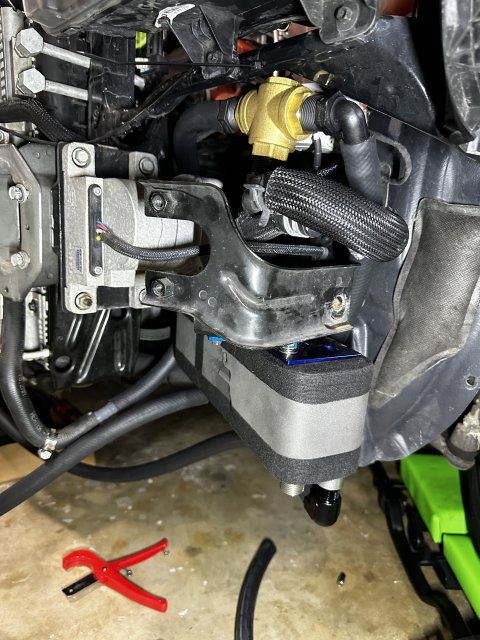

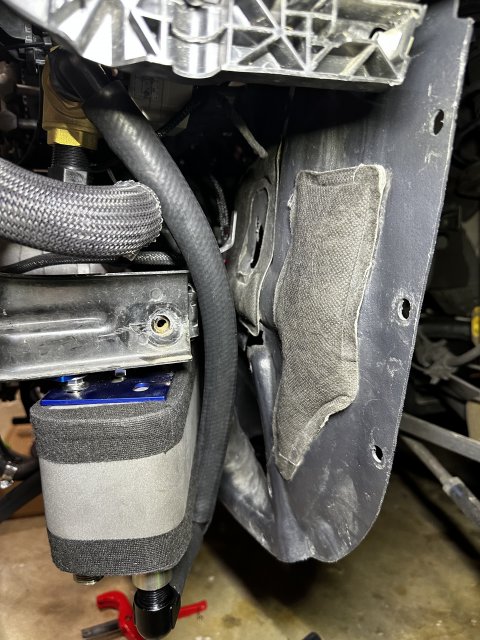

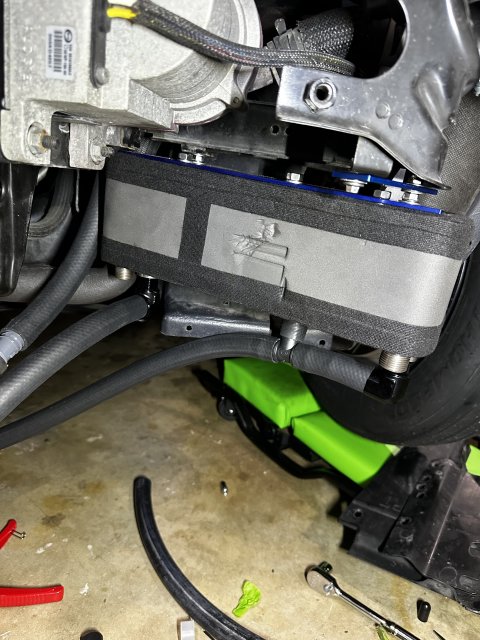

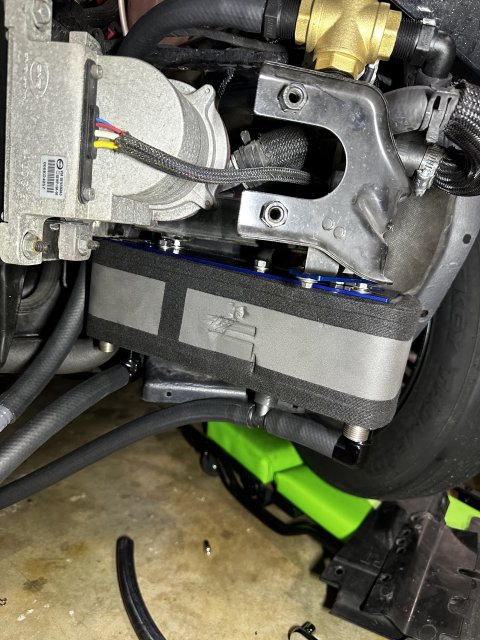

With brick
IMG_1608.jpeg IMG_1610.jpeg IMG_1613.jpeg IMG_1615.jpeg



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #76

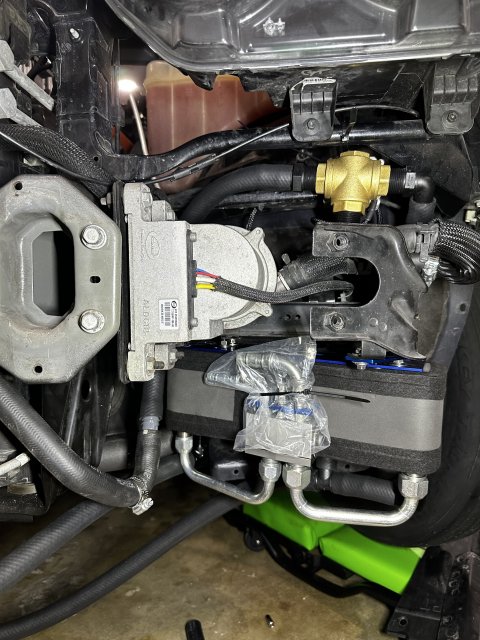

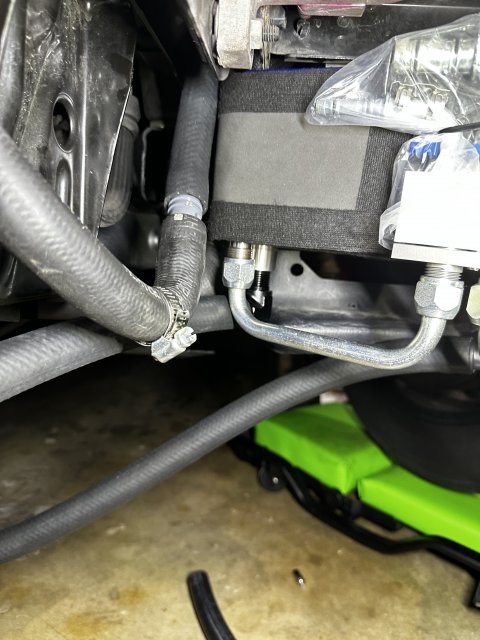

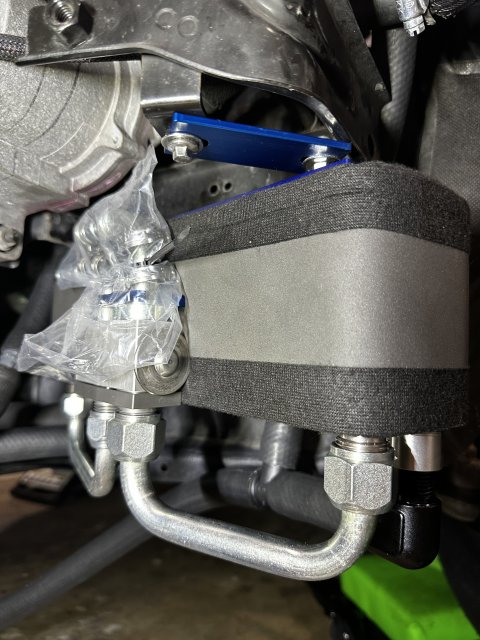

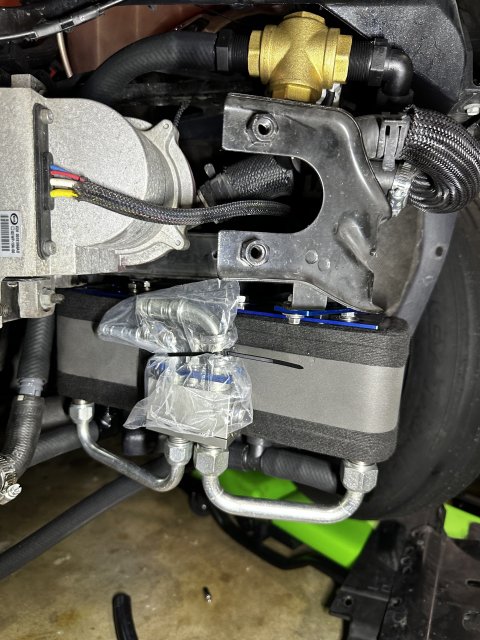

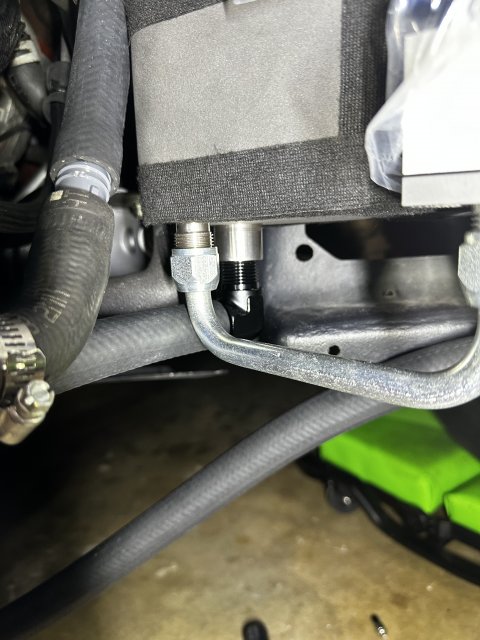

With brick and TXV

IMG_1628.jpeg IMG_1629.jpeg IMG_1630.jpeg IMG_1632.jpeg IMG_1634.jpeg IMG_1637.jpeg IMG_1636.jpeg



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #77
If anyone has any thoughts as to the theory of operation or suggestions on my plumbing I’m open to it



Hickster

4000 Posts Club
Founding Member
HFCOTM
Member ID
#781
Messages
4,892
Reactions
6,292
Likes
302
City
Seminole
State
FL
Country
United States
Vehicle
2018 Hellcat Challenger
#78
Plastic uns is great. Mealuns are a pal in daz ass atol. Uz can paint du ones a meal finish if youz wish. I have delt witha lots of metal finished been a medal finsher allz my life. Industrial metdl finsher all my life.



OP
Unholy707

Unholy707

6000 Posts Club
9 Second Best E/T
HFCOTM
Member ID
#11903
Messages
6,789
Reactions
5,611
Likes
402
City
Orlando
State
FL
Country
United States
Vehicle
2015 Dodge Challenger Hellcat
Thread Starter #79

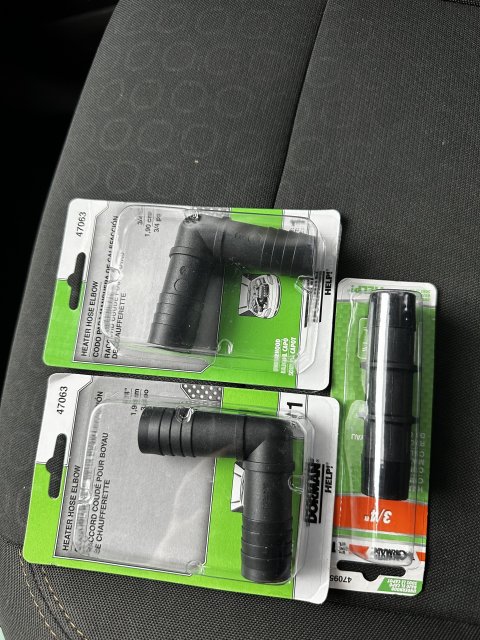

Oreilly’s for the W
